The Aria Fusion is equipped with 5 lasers, UV (15mW @355nm), Violet (50mW @405nm), Blue (50mW @488nm), Red (100mW @633nm), and Green (50mW @561nm). It is capable of measuring up to 18 fluorescescent parameters plus the forward and side scatter signals.  The instrument also has four nozzle sizes (70um, 85um, 100um, 130um) and is capable of several sort collection options: 1.5 ml eppendorphs, 5 ml, and 15 ml tubes, plus index sorting into 96 or 384-well plates.

This system supports a variety of different collection tube formats (with temperature control water bath) which include:

• Two-way sorting: 12 x 75-mm tubes or 15-mL tubes
• Four-way sorting: 1.5-mL eppendorph tubes or 12 x 75-mm tubes

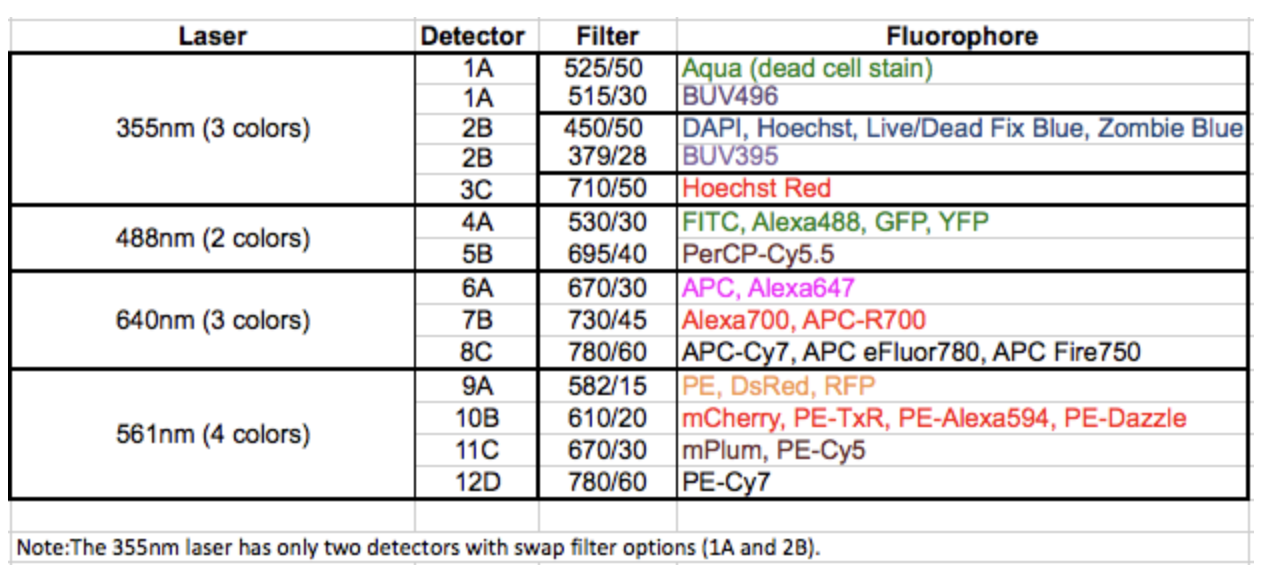

 Suggested Fluorophores with the laser and filter set configuration:

*** Note All Users are required to fill out a intake form when scheduling on iLabs ***

CALENDAR

For online scheduling navigate to iLabs for the core login page: https://ouhsc.corefacilities.org/

Minimum appointment time is 15 minutes and anything longer than 4 hours needs approval.

Any problems with iLab calendar read the help manuals below:

• Core Facilities Scheduling Core Customer Help Manual
• Core Facilities Core Customer Help Manual

WHAT YOU NEED TO BRING

• Cells should be at a concentration of 5x10⁶ to 10x10⁶/ml
• Samples can be in a 12x75ml tube or 15ml conical tube
• Unstained, Isotype and single color controls
• Lab coat

SAFE OPERATING PRACTICES (read before using equipment)

SOP for FACSAria Fusion
